DWDH

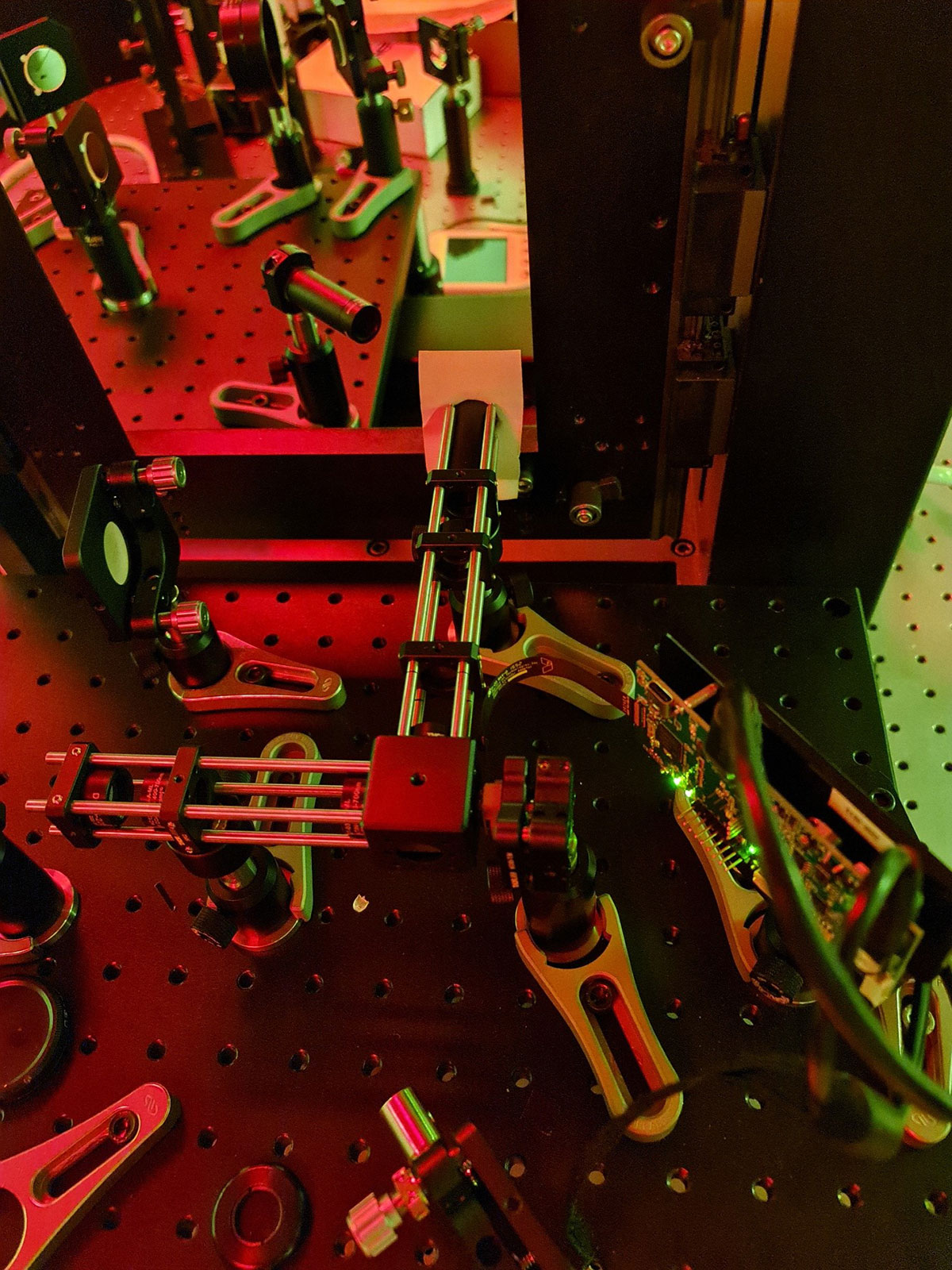

Direct-write digital holography (DWDH) printer was developed for real volume hologram registration with the help of holographic color photopolymer medium.

Technical specification:
1. Max.hologram dimensions – 200*200 mm.
2. Work speed – 1 hogel/sec.
3. Hogel dimension – variable – 40*40 to 400*400 um.
4. Horizontal view angle – 50о.
5. Vertical view angle – 30о.
6. SLM type – LCoS, 1920х1080.
7. Electricity – 220V, 10 kW.
8. Diemnsions – 300*150*220 cm.
9. Weight – 1150 kg.
